Short Question and answers

1) What is QBE?

A) Query by example is a query language used in relational databases that allows users to search for information in tables and fields by providing a simple user interface where the user will be able to input an example of the data that he or she wants to access. The principle of QBE is that it is merely an abstraction between the user and the real query that the database system will receive. In the background, the user's query is transformed into a database manipulation language form such as SQL, and it is this SQL statement that will be executed in the background

2) What is Data dictionary and System Catalog?

A) Data Dictionary : The Data Dictionary contains meta data – data about data. The Data Dictionary provides a detailed description of all tables found within the user (or designer) created database. It contains at least all of attribute’s names and characteristics for each table in the system. It is sometimes described as “the database designer’s database” because it records the design decisions about tables and their structures.

System Catalog : The System catalog is actually a system created database whose tables store the user (or designer) created database characteristics and contents. Like the Data Dictionary, the System Catalog contains metadata. It is described as the detailed system data dictionary that describes all objects within the database, including data about the table names, the table’s creator and creation date, the number of columns in each table, the data type corresponding to each column, index filenames, index creators, authorized users, and access privileges.

3) What is the difference between a database and a table?

Database : The database is a structure that contains one or more tables and metadata. A database is a place where we store required data. A database has tables of data, views, indexes and programs. A database can hold thousands of tables. The database is managed using tools called Database Management Systems(like Oracle, Informix, Sybase, DB2, SQL Server, MYSQL etc.,), you can create, view, modify, and delete databases. Different types of Databases are -Relational -Object Oriented -Object Relational.

Table : A table, a logical structure that represents an entity set, is only one of the components of a database. A table is perceived as two-dimensional structure composed of rows and columns. It exists inside a database. Relational database stores data in tables(called relations). These tables are related to each other. It is an object inside a database. What are the characteristics of Relational Table.

4) What is Entity Integrity and Referential Integrity.

A) Entity integrity is important, because it means that a proper search for an existing tuple (row) will always be successful. And the failure to find a match on a row search will always mean that the row for which the search is conducted does not exist in that table. Referential integrity is important, because its existence ensures that it will be impossible to assign a non-existing foreign key value to a table.

5) Write a short note on Keys

A) In relational model keys are very important because they are used to ensure that each row in a table is uniquely identifiable. They are also used to establish relationships among tables and to ensure the integrity of the data. Therefore, a proper understanding of the concept and use of keys in the relational model is very important. A key consists of one or more attributes that determine (find out) other attributes. Different type of keys are Super Key, Candidate Key, Primary Key, Secondary Key and Foreign Key.

6) Write about Relational Algebra.

A) Relational algebra is a widely used procedural query language. It collects instances of relations as input and gives occurrences of relations as output. It uses various operation to perform this action

7) Define the terms Super Key, Candidate Key, Primary Key, Composite, Primary-Key, Alternate Key, Secondary Key, Non-key attributes and Foreign Key

A) Super Key : It is an attribute (or combination of attributes) that uniquely identifies each row in a table. In short, the super key functionally determines all of a row’s attributes.

Ex: Consider STUDENT table consists of attributes namely

STU_NUM,STU_LNAME, STU_FNAME, STU_INT, STU_PHONE, STU_DOB,

STU_CLASS, STU_EMAIL. In this table Super Key could be any of the following.

STU_NUM (or)

STU_NUM,STU_LNAME (or)

STU_NUM,STU_LNAME,STU_FNAME (or)

STU_NUM,STU_LNAME,STU_FNAME,STU_INT.

In fact, STU_NUM, with or without additional attributes, can be a Super Key even

when the additional attributes are surplus.

Candidate Key : A candidate key can be described as a super key without unnecessary attributes, that is, a minimal (irreducible) super key.

Ex : In the above example STU_NUM is considered as a candidate key since it is a minimal super key.

Primary Key : A candidate key selected to uniquely identify all other attribute values in any given row and cannot contain null entries. (or) A primary key is a set of one or more attributes that can uniquely identify tuples within the relation.

Ex : In the above example STU_NUM is considered as primary key.

Composite-Primary-Key : A group of attributes(more than one) is considered as a Composite-Primary-Key, if it serves the purpose of a primary key, that is, group of attributes provides a unique value which is used to uniquely identify rows in a table.

Ex : Let us consider a table CLASS with attributes CRS_CODE, CLASS_SECTION, CLASS_TIME, PROF_CODE). Here no attribute alone can be taken as primary key

so the combination of CRS_CODE and CLASS_SECTION is treated as composite primary-key.

Candidate Key : All attribute combinations inside a relation that can serve as primary key are candidate keys as they are candidates for the primary key positions.

Ex : Let us consider a table SUPPLIER with attributes SUP_NUM, SUP_NAME, STATUS, CITY. Here SUP_NUM and SUP_NAME are eligible for candidate keys,because SUP_NUM and SUP_NAME alone can serve the purpose of a primary key.

Note : In case of two or more candidate keys, the database designer decides one of them as the primary key for the relation according to requirement.

Alternate Key : A candidate key that is not the primary key is called as an Alternate key.

Ex : In Supplier example SUP_NAME is treated as alternate key if SUP_NUM is considered as primary key and vice-versa

Secondary Key : An attribute (or combination of attributes) used strictly for data retrieval purposes.

Ex : Let us consider a table CUSTOMER with attributes CUST_NUM,

CUST_LNAME, CUST_FNAME, CUST_PHONE, CUST_ZIP. Consider

CUST_NUM is primary key. While searching the data, Instead of using CUST_NUM as key we may use CUST_LNAME and CUST_PHONE combination as key which is considered as secondary key.

Non-Key Attributes : The non-primary-key attributes of a table are referred to as non-key attributes.

Ex : In the above CUSTOMER table except CUST_NUM all attributes are treated as non-key attributes.

Foreign Key : An attribute (or combination of attributes) in one table whose values must either math the primary key in another table or be null. It is used to represent the relationship between two tables. ( or) A non-key attribute, whose values are derived from the primary key of some other table (or be null), is known as Foreign-Key in its current table.

Ex : Consider two tables COURSE with attributes CRS_CODE, DEPT_CODE, CRS_DESC and CLASS with attributes CRS_CODE, CLASS_SEC, CLASS_TIME. Here CRS_CODE is primary key in COURSE table and foreign-key in CLASS table. Here foreign-key contains either matching values or nulls.

Relational Calculus.

Relational Calculus in non-procedural query language and has no description about how the query will work or the data will be fetched. It only focuses on what to do, and not on how to do it. It is contrary to Relational Algebra which is a procedural query language to fetch data.

Relational Calculus exists in two forms:

Tuple Relational Calculus (TRC)

Domain Relational Calculus (DRC)

Tuple Relational Calculus (TRC)

In tuple relational calculus, we work on filtering tuples based on the given condition.

Syntax:

{ T | Condition }

In this form of relational calculus, we define a tuple variable, specify the

table(relation) name in which the tuple is to be searched for, along with a condition. We can also specify column name using a . dot operator, with the tuple variable to only get a certain attribute(column) in result.A tuple variable is nothing but a name, can be anything, generally we use a single alphabet for this, so let's say T is a tuple variable.To specify the name of the relation(table) in which we want to look for data,

we do the following:

Relation(T), where T is our tuple variable.

Ex: if our table is Student, we would put it as Student(T)Then comes the condition part, to specify a condition applicable for a particular attribute(column), we can use the . dot variable with the tuple variable to specify it, like in table Student, if we want to get data for students with age greater than 17, then we can write it as,

T.age > 17, where T is our tuple variable.

Putting it all together, if we want to use Tuple Relational Calculus to fetch names of students, from table Student, with age greater than 17, then, for T being our tuple variable,

Ex1:

Fetch names of students, from table Student, with age greater than 17

T.name | Student(T) AND T.age > 17

Ex2:

Returns tuples with 'name' from Author who has written article on 'database'.

{ T.name | Author(T) AND T.article = 'database' }

Domain Relational Calculus (DRC)

In domain relational calculus we use list of attribute to be selected from the relation based on the condition. It is same as TRC, but differs by selecting the attributes rather than selecting whole tuples. It is denoted as below:

Syntax:

{ c1, c2, c3, ..., cn | F(c1, c2, c3, ... ,cn)}

Domain relational calculus uses the same operators as tuple calculus. It uses logical connectives ∧ (and), ∨ (or) and ┓ (not).Where c1, c2, c3, … cn are attributes of the relation and F is the condition and F defines the formula including the condition for fetching the data.

Ex1:

{< name, age > | ∈ Student ∧ age > 17}

The above query will return the names and ages of the students in the table Student whose age is greater than 17.

Ex2:

{< article, page > |∈ Oracle ∧ topic=’CDB’}

The above query will return the article and page columns of Oracle table where topic is ‘CDB’.

Ex3:

{< article, page, subject > | ∈ books ∧ subject = 'database'}

The above query will return the article, page, and subject from the relation books, where the subject is a database

Types of operations of Relational Algebra.

Every database management system must define a query language to allow users to access the data stored in the database. Relational Algebra is a procedural query language used to query the database tables to access data in different ways. In relational algebra, input is a relation(table from which data has to be accessed) and output is also a relation(a temporary table holding the data asked for by the user).

Relational Algebra works on the whole table at once, so we do not have to use loops etc to iterate over all the rows(tuples) of data one by one. All we have to do is specify the table name from which we need the data, and in a single line of command, relational algebra will traverse the entire given table to fetch data. The primary operations that we can perform using relational algebra are:

Select

Project

Union

Set Different

Cartesian product

Rename

Relational algebra operations are performed recursively on a relation. The output of these operations is a new relation, which might be formed from one or more input relations.

Relational Algebra divided in various groups

Unary Relational Operations

SELECT (symbol: σ ) - sigma

PROJECT (symbol: ∏) - pi

RENAME (symbol: ρ) - rho

Relational Algebra Operations From Set Theory

UNION (∪)

INTERSECTION (∩ ),

DIFFERENCE (-)

CARTESIAN PRODUCT (X )

Binary Relational Operations

JOIN(⋈)

DIVISION

SELECT (σ) - It selects ROWS based on given condition(predicate)

The SELECT operation is used for selecting a subset of the tuples according to a given selection condition. Sigma(σ)Symbol denotes it. Select operation selects tuples that satisfy a given predicate.

σ p(r)

σ is the predicate

r stands for relation which is the name of the table

p is prepositional logic

Example:1

σ topic = "Database" (Tutorials)

Output - Selects tuples from Tutorials where topic = 'Database'.

Example 2

σ topic = "Database" and author = "rk"( Tutorials)

Output - Selects tuples from Tutorials where the topic is 'Database' and 'author' is guru.

Example 3

σ marks>85 (Student)

Output - Selects tuples from Student where marks is greater than 85.

Projection( ∏)

The projection eliminates all attributes of the input relation but those mentioned in the projection list. The projection method defines a relation that contains a vertical subset of Relation. (pi) The symbol used to choose attributes from a relation. This operation helps you to keep specific columns from a relation and discards the other columns.

Ex: Table : Customer

CustomerID     CustomerName     Status

1                         Google              Active

2                         Amazon            Active

3                         Apple                Inactive

4                         Alibaba             Active

If we want to get CustomerName and Status of Customer table we use projection as follows.

∏CustomerName, Status (Customers)

Output:

CustomerName     Status

Google                 Active

Amazon               Active

Apple                   Inactive

Alibaba                Active

Union operation (∪)

UNION is symbolized by ? symbol. It includes all tuples that are in tables A or in B. It also eliminates duplicate tuples. So, set A UNION set B would be expressed as:

The result <-- A U B

For a union operation to be valid, the following conditions must hold -

R and S must be the same number of attributes.

Attribute domains need to be compatible.

Duplicate tuples should be automatically removed

Example : Consider the following tables A,B for UNION, DIFFERENCE &

INTERSECTION.

Table A

col1 col2

1 1

1 2

Table B

col1 col2

1 1

1 3

A ∪B gives

Table : A ∪ B

col1 col2

1 1

1 2

1 3

Set Difference (-)

- Symbol denotes it. The result of A - B, is a relation which includes all tuples that are

in A but not in B.

The attribute name of A has to match with the attribute name in B.

The two-operand relations A and B should be either compatible or Union compatible.

It should be defined relation consisting of the tuples that are in relation A,but not in B.

Example A-B

Table A - B

col1 col2

1 2

Intersection

An intersection is defined by the symbol n

A ∩ B

Defines a relation consisting of a set of all tuple that are in both A and B. However, A and B must be union-compatible.

Example: A ∩ B

Table A ∩ B

col1 col2

1 1

Cartesian product(X)

This type of operation is helpful to merge columns from two relations. Generally, a Cartesian product is never a meaningful operation when it performs alone. However, it becomes meaningful when it is followed by other operations

Example – Cartesian product

σ col2 = '1' (A X B)

Output – The above example shows all rows from relation A and B whose col2 has

value 1

σ col2 = '1' (A X B)

col1 col2

1 1

1 1

Types of JOIN:

Various forms of join operation are:

 Inner Joins:

 Theta join

 EQUI join

 Natural join

Outer join:

 Left Outer Join

 Right Outer Join

 Full Outer Join

Inner Join:

In an inner join, only those tuples that satisfy the matching criteria are included, while the rest are excluded. Let's study various types of Inner Joins:

Theta Join(θ):

The general case of JOIN operation is called a Theta join. It is denoted by symbol ?

Example : A ⋈θ B

Theta join can use any conditions in the selection criteria.

For example:

A ⋈θ A.col2 > B.col2 (B)

A ⋈θ A.col2 > B.col2 (B)

col1 col2

1 2

EQUI join(=):

When a theta join uses only equivalence condition, it becomes a equi join.

For example:

A ⋈ A.col2 = B.col2 (B)

A ⋈ A.col2 = B.col2 (B)

col1 col2

1 1

EQUI join is the most difficult operations to implement efficiently in an RDBMS and

one reason why RDBMS have essential performance problems

NATURAL JOIN (⋈)

Natural join can only be performed if there is a common attribute (column) between the relations. The name and type of the attribute must be same.

Example

Consider the following two tables

C

Num Square

2 4

3 9

D

Num Cube

2 8

3 18

C ⋈ D

Num Square Cube

2 4 4

3 9 9

OUTER JOIN

In an outer join, along with tuples that satisfy the matching criteria, we also include some or all tuples that do not match the criteria.

In the left outer join, operation allows keeping all tuple in the left relation. However, if there is no matching tuple is found in right relation, then the attributes of right relation

in the join result are filled with null values.

Consider the following 2 Tables

A

Num Square

2 4

3 9

4 16

B

Num Cube

2 8

3 18

5 75

A B

Num Square Cube

2 4 4

3 9 9

4 16 -

In the right outer join, operation allows keeping all tuple in the right relation.

However, if there is no matching tuple is found in the left relation, then the attributes of the left relation in the join result are filled with null values.

A B

Num Cube Square

2 8 4

3 18 9

5 75 -

In a full outer join, all tuples from both relations are included in the result, irrespective of the matching condition.

A B

Num Cube Square

2 4 8

3 9 18

4 16 -

5  - 75

CODD rules.

In 1985, Dr Edgar Frank Codd, A computer scientist working for IBM proposed the relational model for database management which forms the theoretical basis for relational databases. He defined thirteen rules, numbered from 0 to 12. Accordingly, if a database has to be called as true relational database management system, then it has to follow all these rules.

Rule 0

This rule states that for a system to qualify as an RDBMS, it must be able to manage database entirely through the relational capabilities.

Rule 1: Information rule

 All the information including metadata (data about data ) has to be represented as stored data in cells of tables.

Rule 2: Guaranteed Access Rule

Each unique piece of data(atomic value) should be accessible by Table Name + Primary Key(Row) + Attribute(column).

Rule 3: Systematic treatment of NULL

If any of the cell value is unknown, or not applicable or missing, it cannot be represent as zero or empty. It will be always represented as NULL. This NULL should be acting irrespective of the data type used for the cell.

Rule 4: Active Online Catalog Based On the Relational Model

Database dictionary (catalog) is the structure description of the complete Database and it must be stored online. We should be able to access these metadata by using same query language that we use to access the database.

Rule 5: Powerful and Well-Structured Language

One well structured language must be there to provide all manners of access to the data stored in the database. Example: SQL, etc. If the database allows access to the data without the use of this language, then that is a violation.

Rule 6: View Updation Rule

This rule states that views are also be able to get updated as we do with its table.

Rule 7: Relational Level Operation (High-Level Insert, Update And Delete Rule)

The system must support Insert, Update and Delete operations at each level of relations.

Rule 8: Physical Data Independence Rule

The physical storage of data should not matter to the system. If say, some file supporting table is renamed or moved from one disk to another, it should not effect the application.

Rule 9: Logical Data Independence

Here if there are any changes to the logical view, then it should not be reflected in the user view.

Rule 10: Integrity Independence Rule

The database should be able to enforce its own integrity rather than using other programs. Key and Check constraints, trigger etc, should be stored in Data Dictionary. This also makes RDBMS independent of front-end

Rule 11: Distribution Independence

A database should work properly regardless of its distribution across a network. Even if a database is geographically distributed, with data stored in pieces, the end user should get an impression that it is stored at the same place. This lays the foundation of distributed database.

Rule 12: Non- subversion Rule

If low level access is allowed to a system it should not be able to subvert or bypass integrity rules to change the data. This can be achieved by some sort of looking or encryption.

How to find the number of candidate keys in the given relation schema

Example 1:

R (ABCDEFGH)

CH->G

A->BC

B->CFH

E->A

F->EG

Candidate Keys are : AD,BD,DE,DF

Example 2:

R (ABCDEF)

AB->C

C->D

B->AE

Candidate Keys are : BF

Example 3:

R (ABCD)

AB->CD

D->A

Candidate Keys are : AB,BD

Example 4:

R (ABCD)

A->B

B->C

C->A

Candidate Keys are : AD,BD,CD

Example 5:

R (ABCD)

ABC->D

AB->CD

A->BCD

Candidate Keys are : AB,AC,AD

Normalization

It is a technique of organizing the data into multiple related tables, to minimize DATA REDUNDANCY. Repetition of similar data at multiple places occupies extra space in the memory.

It also causes other issues known as anomalies.

There are three types of anomalies that occur when the database is not normalized. They are

1.Insertion Anomaly

2.Updation Anomaly

3.Deletion Anomaly

1.Insertion Anomaly

To insert redundant data for every new row is a data insertion problem or anomaly.

2.Deletion Anomaly

Loss of related dataset when some other dataset is deleted.

3.Updation Anomaly

Because of data redundancy  same data in multiple places may not be updated which leads to inconsistent data.

**Normalization breaks the existing table into multiple tables.

Normalization can be achieved in multiple ways.

1. 1st Normal Form (1NF)  -------atomic values

2. 2nd Normal Form (2NF) -------X Partial Dependency

3. 3rd Normal Form (3NF) ------- X Transitive Dependency

4. BCNF(Boyce-Codd Normal Form) or 3.5 Normal Form.

5. 4th Normal Form (4NF)

6. 5th Normal Form (5NF)

1. 1st Normal Form (1NF)   - 1 A

There are 4 basic rules that a table should follow to be in 1st Normal Form

1. Each column should contain atomic values

2. A column should contain values that are of the same type.

3. Each column to have a unique name

4. Order in which data is saved doesn't matter.

If all the above rules are satisfied then we say that the given table is in 1NF.

Let us consider STUDENT table

RNO     NAME       SUBJECT

101    SWETHA     OS,CN

102    RAVI           JAVA

103    KAVYA        C,CPP

The above table already satisfied 3 rules of 1NF out of 4. Out of 3 students two have opted for more than one subject. we stored the subject name in a single column. To keep the table in 1NF solution is, break the subject values into atomic values.

RNO     NAME       SUBJECT

101       SWETHA   OS

101       SWETHA   CN

102       RAVI        JAVA

103       KAVYA      C

103       KAVYA      CPP

Although few values are getting repeated values for subject column is atomic for each row. Hence the table is in 1NF.

2. 2nd Normal Form (2NF)  - 2 P

Note: No Partial Dependency     α(Prime) -> β (Non Prime)

For a table to be in second normal form. It should follow the following rules.

1. It should be in 1NF

2. It should not have any "Partial Dependencies"
eg: B ->C
      A ->C

3. It should be only "Full Dependencies"
 eg: AB ->C

Dependency or Functional Dependency

If an non-prime attribute (B) is dependent on a composite key (A) but not on any subset of  the composite key, such dependency is known as Functional Dependency.

Composite Key: A key which has multiple attributes to uniquely identify rows in a table is called composite key.

Example: std_id(PK)    sub_id(PK)    marks    exams
therefore both std_id & sub_id (Primary Key 's) are called composite key

Partial Dependency

If a nonprime attribute is functionally dependent on part of a candidate key, then it is said to be Partial Dependency.

For Example 1:
R(ABCDEF)

FD: C->F

      E->A

      EC ->D

      A->B

(CE) Closer =ABCDEF=R is a candidate key

C,E are the Prime Attributes (P)(It is a part of Candidate Key)

E,A,D,B,F are the Non Prime Attributes (NP)(It is not a part of Candidate Key)

      EC->D  Partial Dependency    L (P)  ->  R (NP)

Therefore 2NF is

R(ABCDEF)

R1(CF)
R2(EA)
R3(ECD)

For Example 2:

R(ABCD)

FD: AB ->D

      B->C

(AB) Closer =ABCD=R is a candidate key

A,B are the Prime Attributes (P)(It is a part of Candidate Key)

C,D are the Non Prime Attributes (NP)(It is not a part of Candidate Key)

      B->C  Partial Dependency    L (P)  ->  R (NP)

Therefore 2NF is

R(ABCD)

R1(ABD)
R2(BC)

Example on 2NF:

Consider a table

STUDENT (S_ID(PK),SNAME,RNO,BRANCH,ADDRESS)

S_ID       SNAME      RNO              BRANCH         ADDRESS
1             KAVYA        7                   CSE                   AP
2             RAHUL        99                 IT                     HR
3             VIJAY          68                 CSE                  MH
4             GIRI            59                 CSE                  TN

In above table S_ID is Primary Key

Consider another table SUBJECT(SUB_ID(PK),SUBNAME)

SUB_ID    SUBNAME

    1           JAVA

    2           CPP

    3           PYTHON

    4           ORACLE

We have STUDENT table  and  SUBJECT table during exams  consider another table SCORE is created.

Table Name :
SCORE(SCORE_ID,S_ID,SUB_ID,MARKS,FNAME)

SCORE_ID      S_ID   SUB_ID     MARKS     FNAME
        1          1          1              67             RK
        2          1          2              89             PK
        3          2          1              99             KK
        4          3          4              85             DK
        5          2          3              64             JK

In SCORE table can say that the Primary Key is score_id.

If we want to fetch marks of student with s_id=1 we get two values.

Because we don't know for which subject you are asking,  similarly, if we use sub_id we don’t know for which student.

But s_id+sub_id  together makes a meaningful Primary Key and we can fetch all information using it. It is a composite Primary Key

Hence, s_id+sub_id can uniquely identify any row data in SCORE table.

But, in SCORE table the column tname is only dependent on sub_id and not on s_id, which is a part of  Primary Key. This is known as PARTIAL DEPENDENCY.

To convert above table into 2NF remove tname from SCORE table and move it to subject table. Now the new SCORE table  is

Table Name : SCORE

SCORE_ID    S_ID   SUB_ID     MARKS
        1         1          1              67
        2         1          2              89
        3         2          1              99
        4         3          4              85
        5         2          3              64

Table Name : SUBJECT

SUB_ID         SUBNAME           TNAME
    1                JAVA                  RK
    2                CPP                   PK
    3                PYTHON             JK
    4                ORACLE             DK

Now, SCORE table is in 2NF

3. 3rd Normal Form (3NF) - 3 T

Note: No Transitive Dependency  α(Non Prime) -> β (Non Prime)

For a table to be in 3NF

1. It should be in 2NF

2. It should not have Transitive Dependency i.e  No non-prime should determine non-prime

Transitive Dependency

In a table, if a non-prime attribute is dependent on another non-prime attribute and not on prime attribute, such type of dependency is known as Transitive Dependency.

For Example 1:
R(ABCD)

FD: AB ->C

      C->D

(AB) Closer =ABCD=R is a candidate key

A,B are the Prime Attributes (P)(It is a part of Candidate Key)

C,D are the Non Prime Attributes (NP)(It is not a part of Candidate Key)

      C (NP) -> D(NP)  Transitive Dependency    L (NP)  ->  R (NP)

Therefore 3NF is

R(ABCD)

R1(ABC)
R2(CD)

Example 2:

Table Name : SCORE

SCOREID   SID   SUBID  MARKS   EXAMNAME    TOTMARKS
1                1          1       67          JAVA              100
2                1          2       89          CPP                75
3                2          1       99          JAVA              100
4                3          4       85         ORACLE          200
5                2          3       64         PYTHON          150

Here Primary Key is a composite key made up of  SID+SUBID

If we observe EXAMNAME, depends on SID+SUBID, but TOTMARKS is only dependent on EXAMNAME and not on SID+SUBID.

So, EXAMNAME is not part of Primary Key, which is a non-prime attribute, which is Transitive Dependency. So we need to remove it, to convert the table into 3NF.

Move EXAMNAME and TOTMARKS to a new table EXAM

now SCORE table look like this

Table Name : SCORE

SCOREID           SID     SUBID       MARKS        EXAMNAME
        1                1          1              67                JAVA
        2                1          2              89                CPP
        3                2          1              99                JAVA
        4                3          4              85                ORACLE
        5                2          3              64                PYTHON

Table Name : EXAM

EXAMNAME        TOTMARKS
        JAVA               100
        CPP                 75
        JAVA               100
        ORACLE          200
        PYTHON          150

Now, there is no Transitive Dependency in SCORE table, Hence it is in 3NF.

4. BCNF(Boyce-Codd Normal Form) or 3.5 Normal Form.

Note:       α(Super key) -> β (Prime/Non Prime)

For a table to be in BCNF

1. It should be in 3NF

2. For any dependency A-->B, A should be a super key.

It means for, A -> B

If A is non-prime and B is a prime attribute

Ex: COLLEGE
SID      SUB        PROF
101      JAVA       RAM
101       C++     VIJAY
102      JAVA      GURU
103       C#        RAGHU
104      JAVA      RAM

In this table SID+SUB is a primary key.

The above table is in 1NF,2NF and 3NF

If you observe the above table PROF can lead a SUB and SUB is a part of candidate key/primary key(SID+SUB). Hence it is a prime attribute. While is PROF is a non-prime attribute. Hence we have a dependency here, where SUB is dependent on PROF.

But, PROF is not a super key, so the table doesn’t satisfy BCNF.

To convert it into BCNF we have to break the table. We can divide COLLEGE table as STUDENT & PROFESSOR TABLE.

STUDENT
SID     PID
101     11
101     22
102     33
103     44
104     11

PROFESSOR
PID    PROF      SUB
11      RAM       JAVA
22      VIJAY     C++
33      GURU     JAVA
44      RAGHU  C#

Now the above college table is converted into BCNF.

Enhanced Entity Relationship (EER)

Enhanced Entity Relationship (EER) Model is a high level data model which is an extension to original Entity Relationship (ER) model. EER Models supports more details design. EER Modeling emerged as a solution for modeling highly complex databases.

As the complexity of data increased day to day, it became more and more difficult to use the traditional ER Model for database modeling. Hence some enhancements were made to the existing ER Model to make it able to handle the complex applications better.

Hence, as part of the Enhanced ER Model, along with other improvements, three new concepts were added to the existing ER Model, they were:

Generalization

Generalization is a bottom-up approach in which two lower level entities combine to form a higher level entity. In generalization, the higher level entity can also combine with other lower level entities to make further higher level entity. Here sub-classes are combined to form a super-class.

Example: Saving and Current account types entities can be generalized and an entity with name Account can be created, which covers both.



Specialization

Specialization is opposite to Generalization. It is a top-down approach in which one higher level entity can be broken down into two lower level entity. In specialization, a higher level entity may not have any lower-level entity sets, it's possible.

Example: Student entity can be specialized and can be divided into two entities with name Ex-Student and Current_Student.



Aggregation

Aggregation is a process when relation between two entities is treated as a single entity.

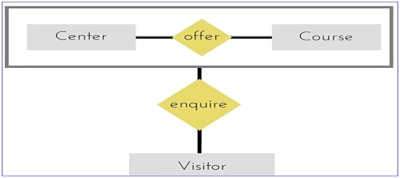

Example: In the diagram below, the relationship between Center and Course together, is acting as an Entity, which is in relationship with another entity Visitor. Now in real world, if a Visitor or a Student visits a Coaching Center, he/she will never enquire about the center only or just about the course, rather he/she will ask enquire about both.
